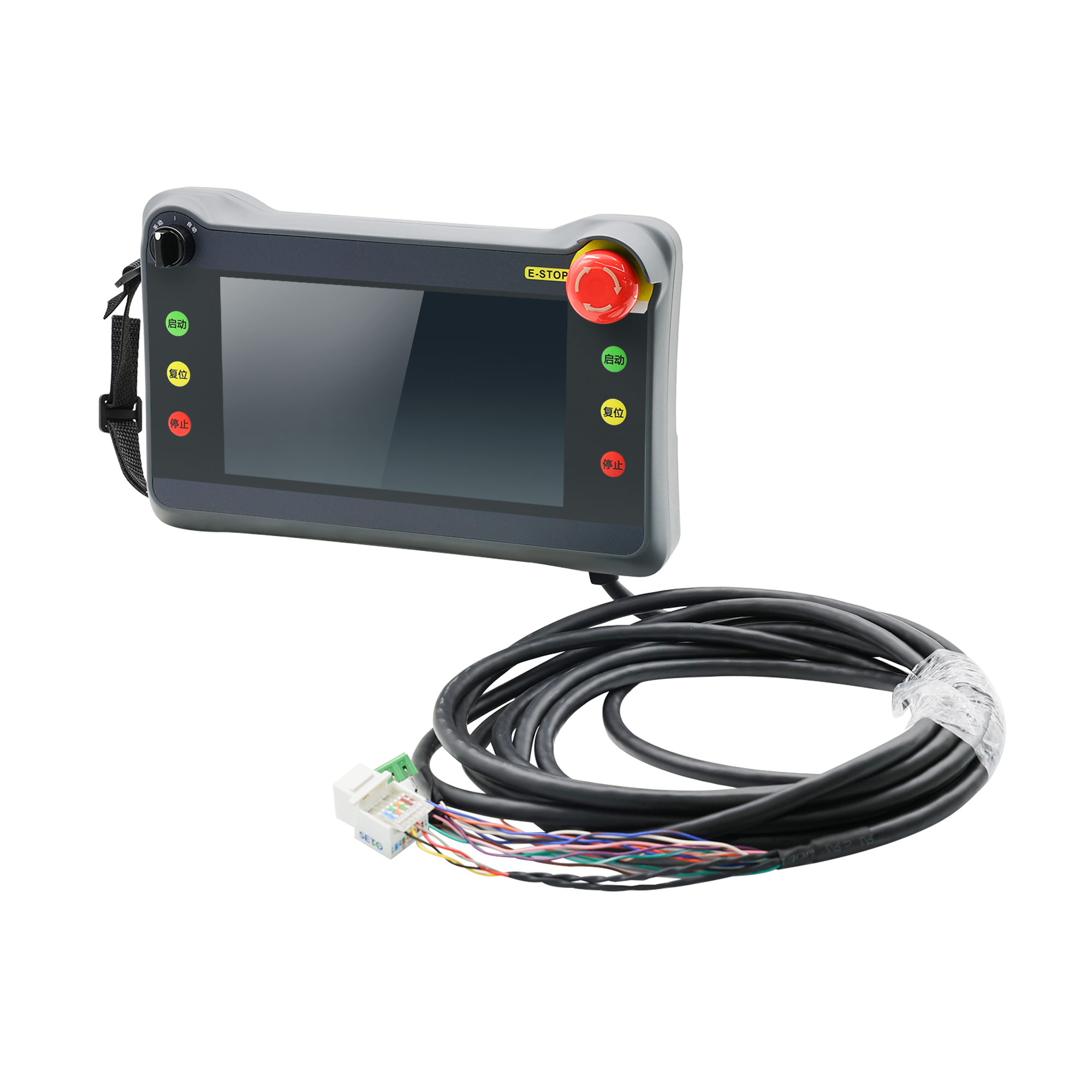

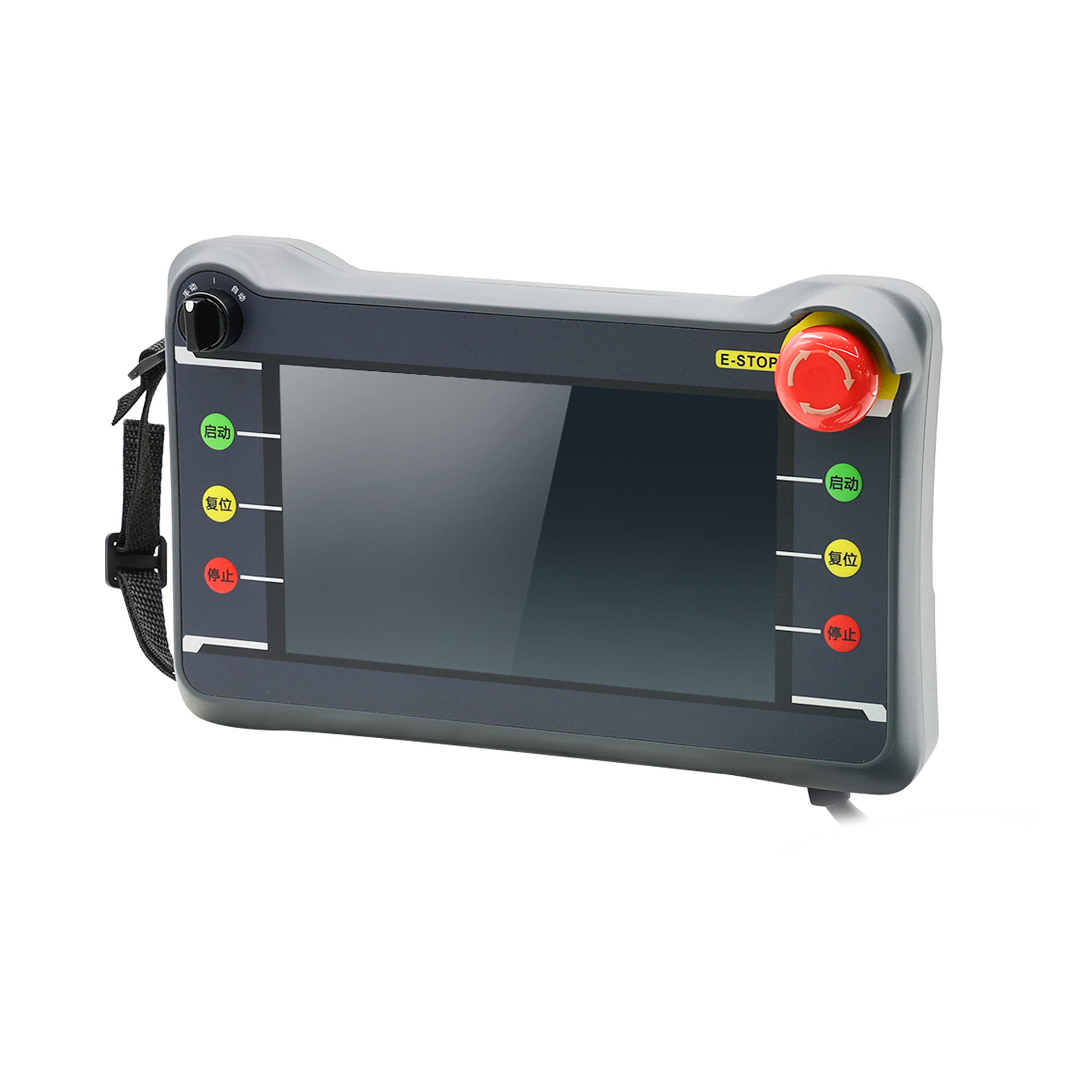

Display: 7-inch HD Resolution (1024x600),16.77M True Colors, 85° Wide Viewing Angle (85/85/85/85)
Performance: Dual-core 1GHz Processor, 256MB RAM + 4GB Storage
Standard Features: Ethernet port, Serial port, Emergency stop switch, Dual selection, Programmable buttons
Standard 5-meter cable, perfect for mobile applications, ensuring convenience and ease of use
Based on the latest KincoDTools Pro configuration software& EdaeAccess2 remote operation &maintenance platform
7" TFT
154.21mm(H)x85.92mm(H)
1024*600px
16.77M
85/85/85/85(L/R/U/D)
800:1
LED
450cd/m²
30000 hours
6
1
1
None
Reinforced glass capactive touch panel
ARM Cortex-A7 dual core 1GHz
4GB eMMC +256MB RAM
Built-in
1 USB Host
1 USB Host/Serial port
LAN0:10/100 Mbps
Ethernet port/USB Slave（Type-C）/U disk
Ethernet
COM0:RS485
DC10V～DC28V
7W@DC 24V
<3ms
Over 50MΩ@500V DC
500V AC 1 minute
None
Engineering plastic
5m 14-core flexible loose cable
204.4*150.4*44.1

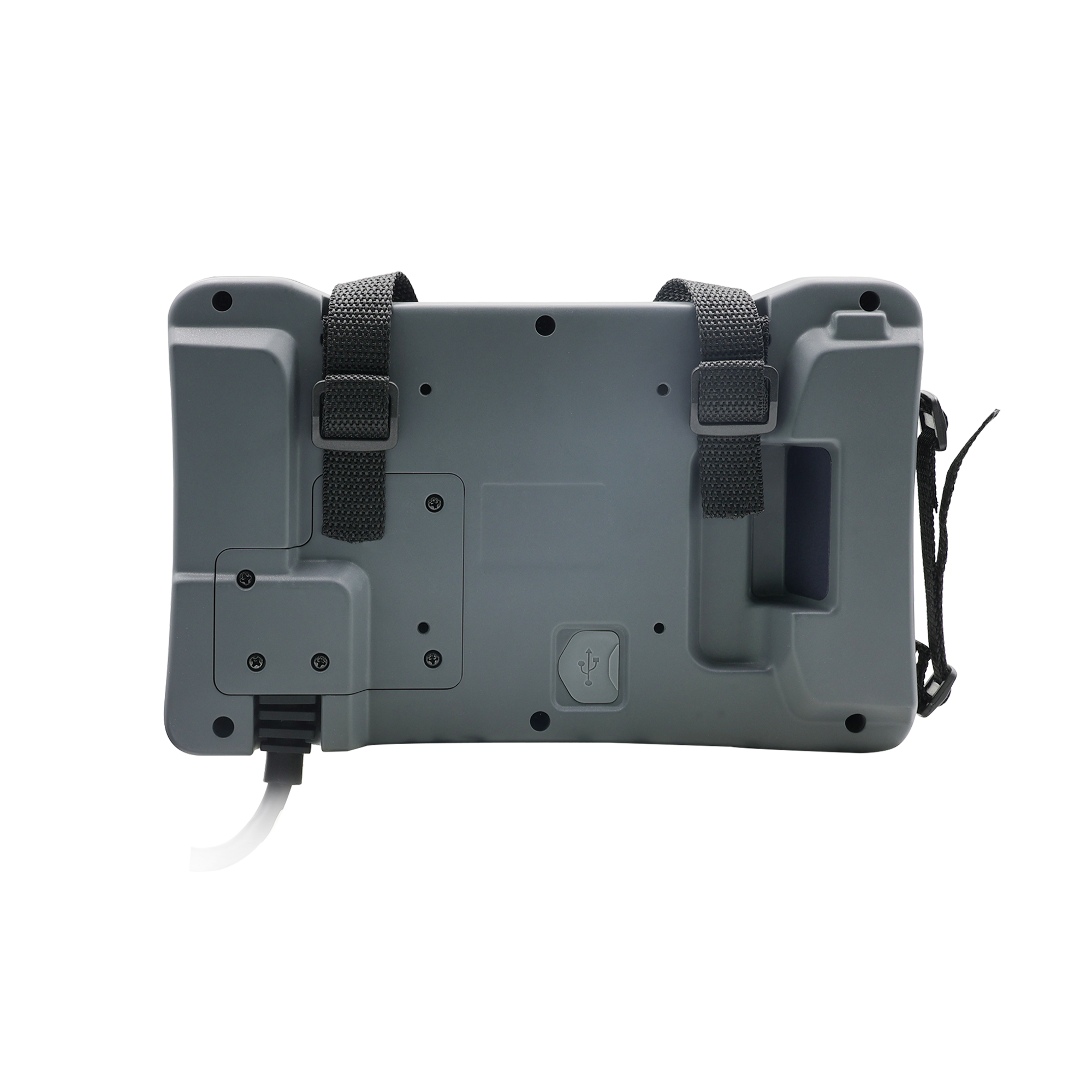

Bracket installtion （75*75mm）/suspension installation
0~50℃
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10~500Hz, 30m/s², X,Y,Z direction/hour
Natural air cooling
Conforming to IP62 requirements
EN61000-6-4:2007+A1:2011，EN61000-6-2:2019
Kinco DToolsPro
